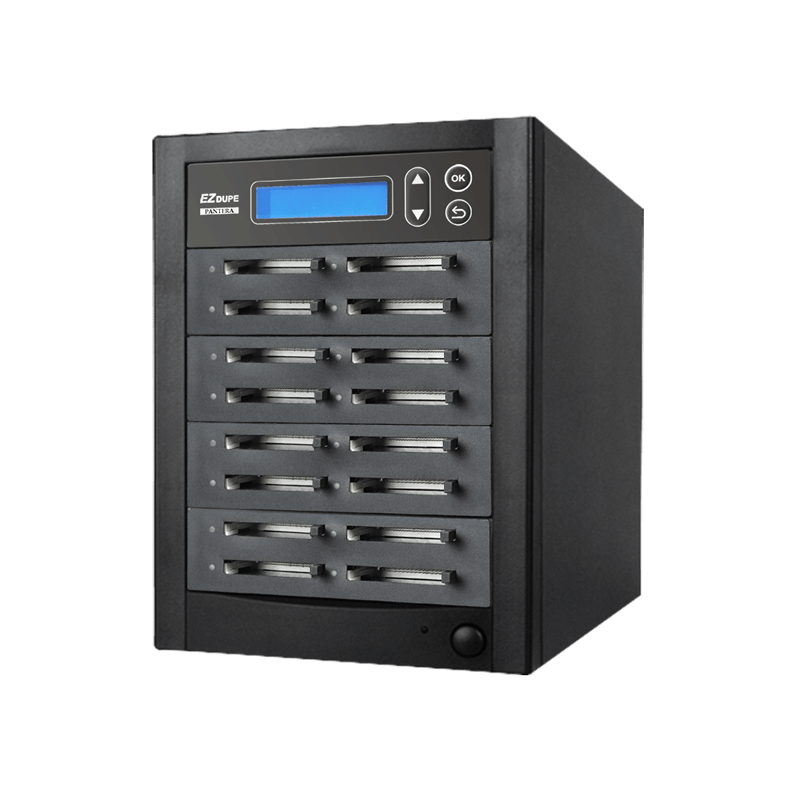

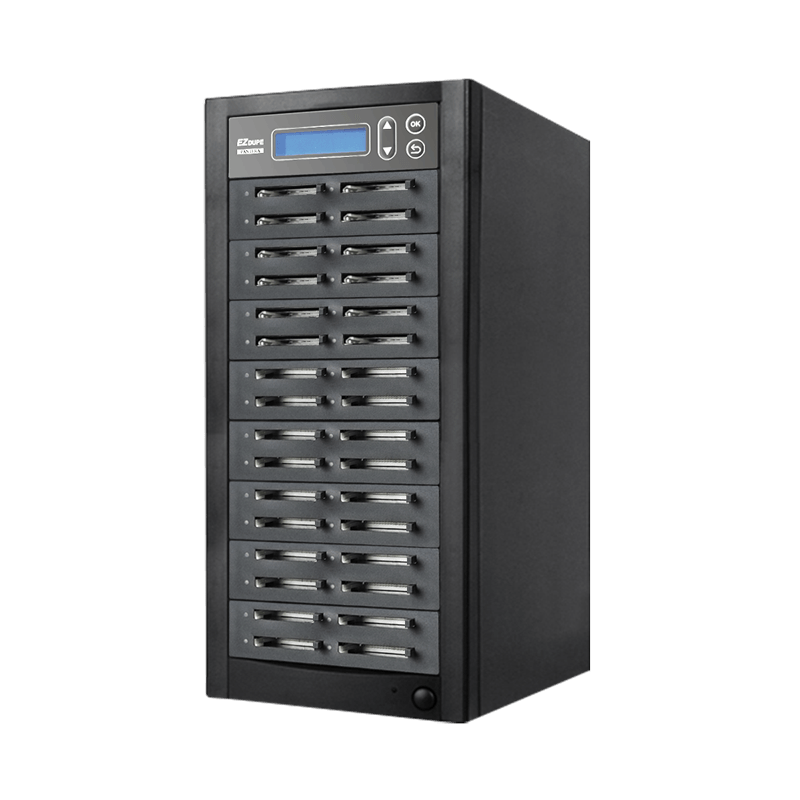

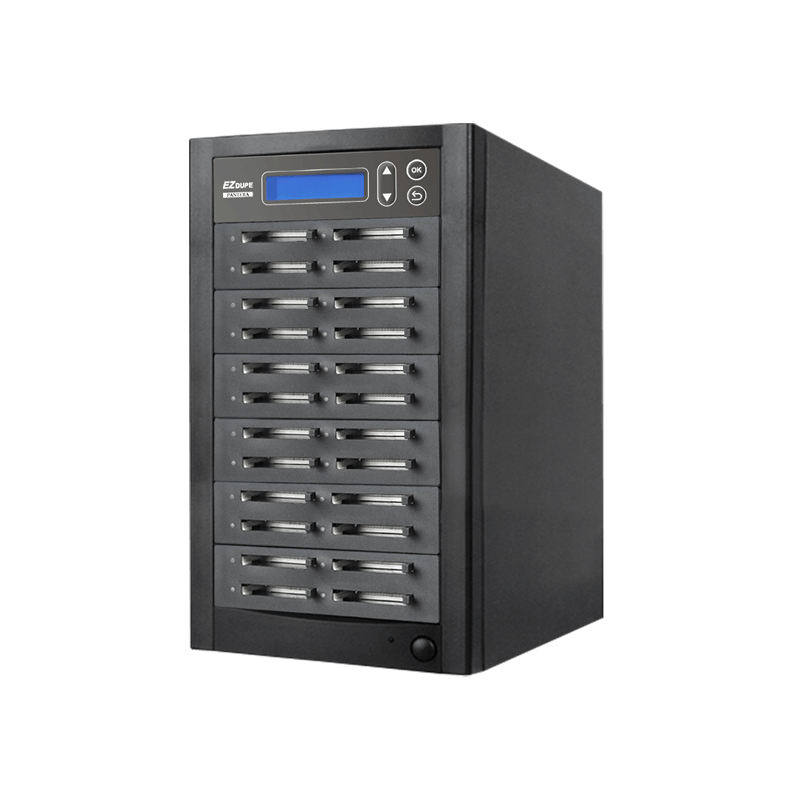

Tower CF Card Duplicator

The Must-have Duplicator for Factory & Manufacturer

  • High copy speed up to 35MB/s
  • Proficient duplication with Asynchronous copy
  • Up to 31 ports available
  • Intelligent Copy achieve most efficient performance
  • 3 data erase modes

Tower CF Card Duplicator
cf 2

High Efficiency 1 : Extremely High Copy Speed

The copy speed of Tower CF Duplicator is up to 35MB/s or 2.1GB/min. The copy speed will remain the same even if the number of load is increased. In today’s competitive business environment, higher efficiency allows you to stand out from the others.

High Efficiency 2 : Asynchronous Copy Saves Your Every Minute

Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved. Exclusive technology enables asynchronous operation without the restrictions of memory size.
asynchronous duplication of CF card
cf 4

High Efficiency 3 : Intelligent Copy–Only Copy Valid Data Area

Analyze valid data area promptly by unique source analysis technology, only copy system and data file. Supported file systems under three major operating systems: Windows, Linux and macOS. No need to copy the whole media and allowing you to do more in less time!

The Best Guard for CF Card Inspection-Quality Check

H3 Read Test
H5 Write/Read Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

6 Testing Criteria
Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/ Format type

4 Testing Results
Bad sector quantity / Tested capacity / Average read speed / Average write speed
cf 5

Three Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.
  • Quick Erase: Erase the index of a hard drive within a few seconds.
  • Full Erase: Erase the data from a hard drive by overwriting each sector which is able to read/write data.
  • DoD Erase (3pass DoD): Erase HDD 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.
hdd duplicartor 5
cf 6

Other Features

  • Simple and intuitive user interface
  • Standalone, no need of computer or software, therefore no virus infection

Technical Specification


Operation Type Standalone (No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)
Target 7 ~ 31
Copy Speed 35MB/s
Copy Mode Synchronous/ Asynchronous
Copy Area Whole Media/ System and Files (Intelligent Copy)
Supported Media Compact Flash (CF Card) Type 1/2, Microdrive
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
macOS: HFS, HFS+, HFSX
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Requirement 115~230V
Temperature Range Operating: 41°F ~ 113°F (5°C ~ 45°C)
Storage: -4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating: 20%~80%
Storage: 5%~95%
Certification FCC, CE, RoHS
