FlashMAX SD Duplicator

Innovative, neat and elegant design of FlashMax SD Duplicator

  • Simple, neat and elegant design
  • High copy speed up to 35MB/s
  • Proficient duplication with Asynchronous copy
  • Intelligent Copy achieve most efficient performance
  • 3 data erase modes
FlashMAX SD Card Duplicator
flashmax sd 2

Speedy - Copying Speed up to 35MB/s

The copy speed of FlashMAX SD Duplicator is up to 35MB/s or 2.1GB/min. The copy speed will remain the same even if the number of load is increased. In today’s competitive business environment, higher efficiency allows you to stand out from the others.

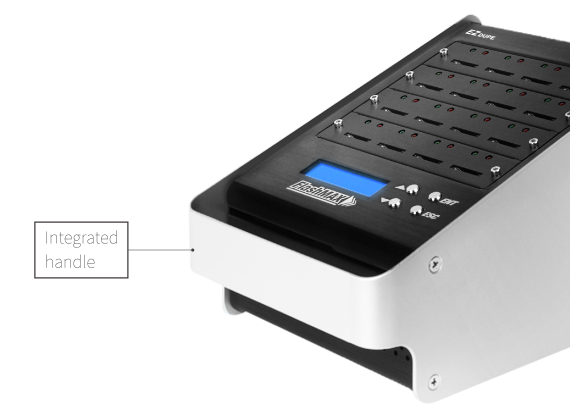

Special Handle Design for More Mobility

FlashMAX SD Duplicator incorporates a special handle design, making it easily to lift and move to match today’s mobile life.
flashmax sd 3
flashmax sd 4

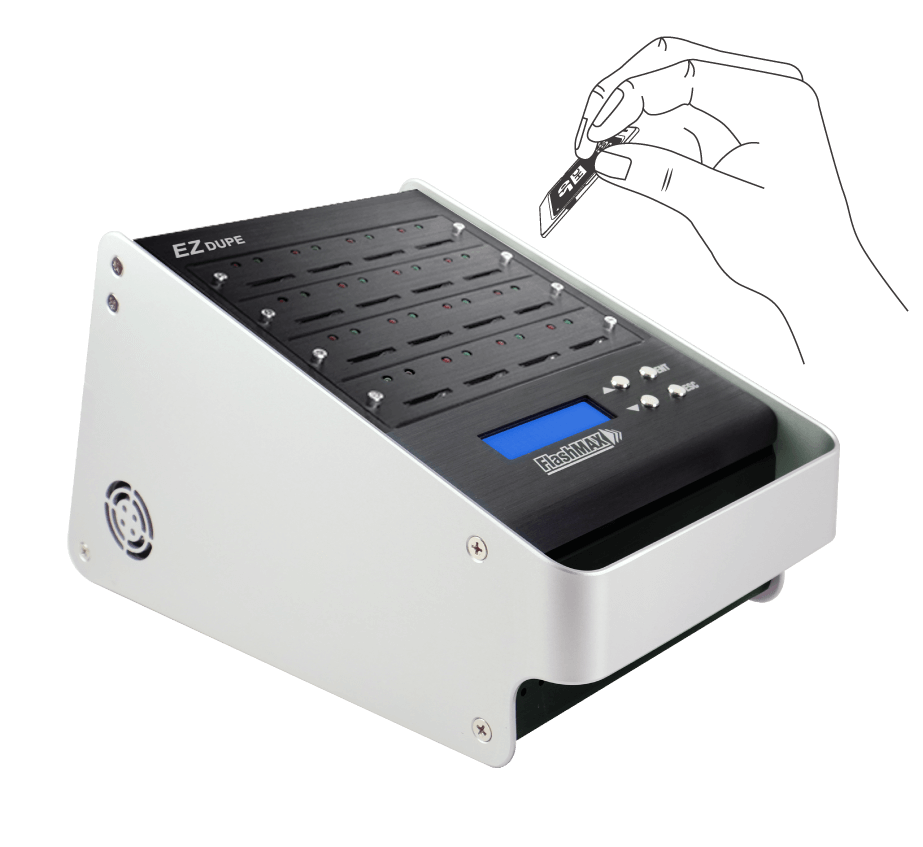

State of the Art

In aspirations of simple and neat design, FlashMAX series duplicator embedded SD ports on a special streamlined slope panel, allowing you to easily plug or unplug SD cards in an ergonomic angle.

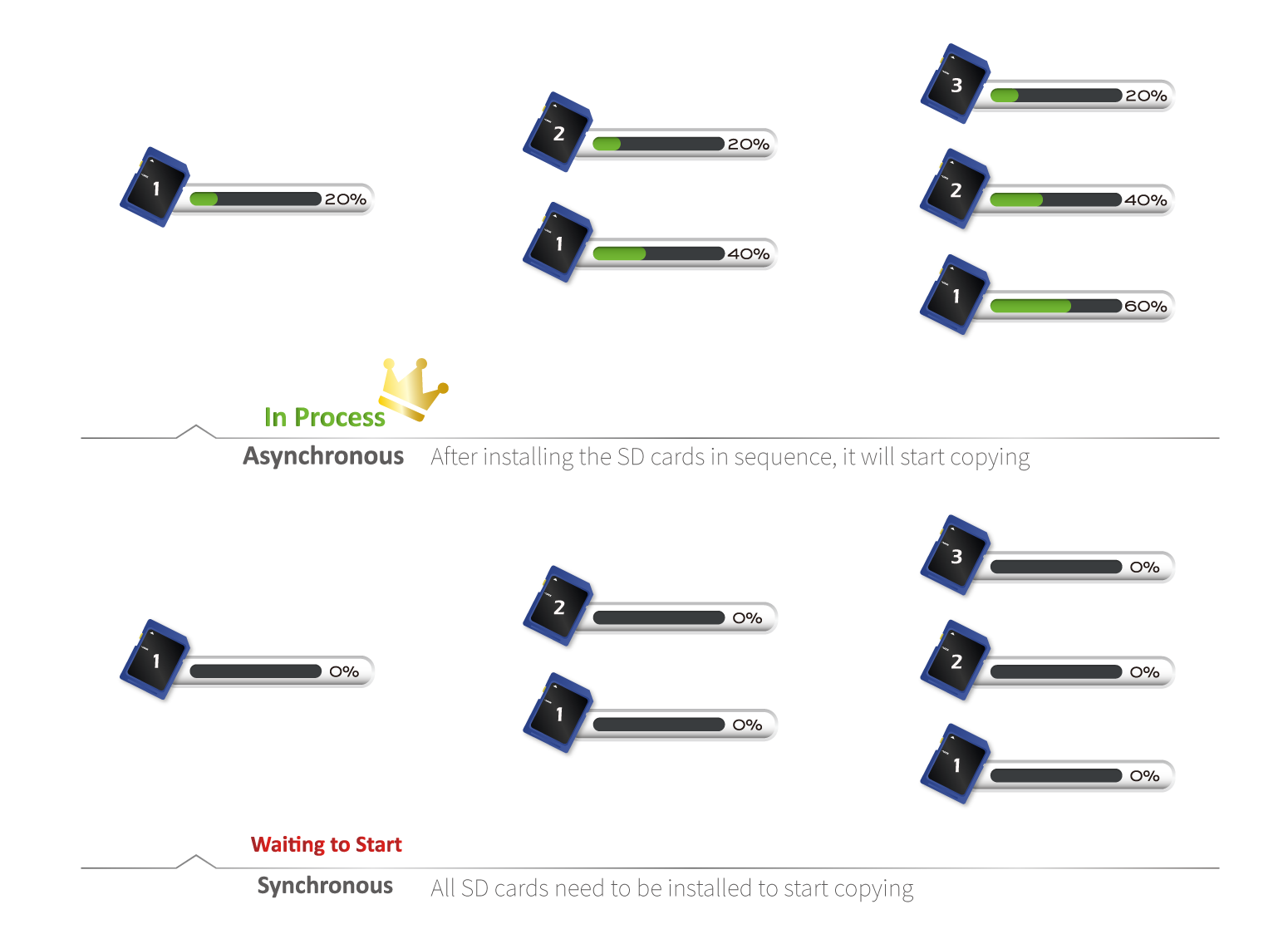

SD Card Asynchronous Copy Increase Working Efficiency Significantly

Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved. Exclusive technology enables asynchronous operation without the restrictions of memory size.
Asynchronous Copy of FlashMAX SD Duplicator
flashmax sd 6

Intelligent Copy Only Copy Valid Data Area

Utilizes unique source analysis technology to analyze the valid data area on a SD card promptly and only copy system and data file. Choosing proper copy modes based on different demand situations saves plenty of time for you! Supported file systems under three major operating systems: Windows, Linux and macOS. No need to copy the whole media and allowing you to do more in less time!

Powerful Quality Check of SD Memory Card

H3 Read Test
H5 Write/Read Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

6 Testing Criteria
Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/ Format type

4 Testing Results
Bad sector quantity / Tested capacity / Average read speed / Average write speed
flashmax sd 7

Three Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.
  • Quick Erase: Erase the index of a hard drive within a few seconds.
  • Full Erase: Erase the data from a hard drive by overwriting each sector which is able to read/write data.
  • DoD Erase (3pass DoD): Erase HDD 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.
hdd duplicartor 5
flashmax sd 8

Other Features

  • User-friendly interface
  • No PC or Software needed - eliminating virus opportunity
  • Supports copy of single large file (over 4GB) with better compatibility

Technical Specification

Operation Type Standalone (No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)
Target 15, 31, 39
Copy Speed 35MB/s
Copy Mode Synchronous/ Asynchronous
Copy Area Whole Media/ System and Files (Intelligent Copy)
Supported Media SD card depending on models (format: SD, SDHC)
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Requirement 115~230V
Temperature Range Operating: 41°F ~ 113°F (5°C ~ 45°C)
Storage: -4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating: 20%~80%
Storage: 5%~95%
Certification FCC, CE, RoHS
