PRO series

CF FlashMAX

Professional Multifunction CF Duplicator — 3-in-1 Copy, Erase and Test

With its elegant and ergonomic plug-in design, the CF Flashmax allows plugging and unplugging numerous CF cards at a smooth angle. With intelligent and asynchronous copy, the CF Flashmax can swiftly complete any copying, erasing, or testing tasks, greatly improving production efficiency. It's the perfect and simple solution for mass production!

Buy Now!

Features
Spec

Superb Copy Speed

The copy speed of FlashMax CF Duplicator is up to 35MB/s or 2.1GB/min. The copy speed will remain the same even if the number of load is increased. In today’s competitive business environment, higher efficiency allows you to stand out from the others.

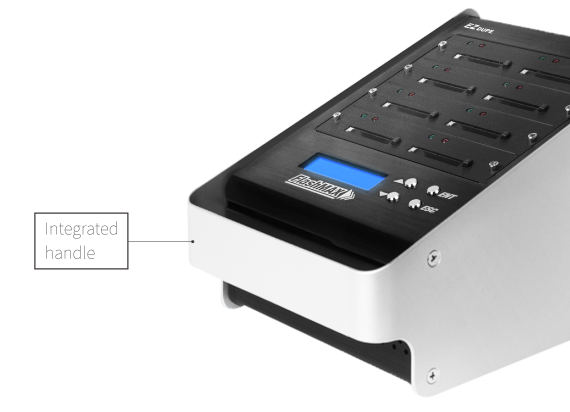

Easy to move with a single handle

With the handle integrated into the case, the duplicator features an easily portable design that will change the workplace’s efficiency.
With a silver brushed metal interface, the duplicator’s rich new appearance reflects EZ Dupe’s new vision!

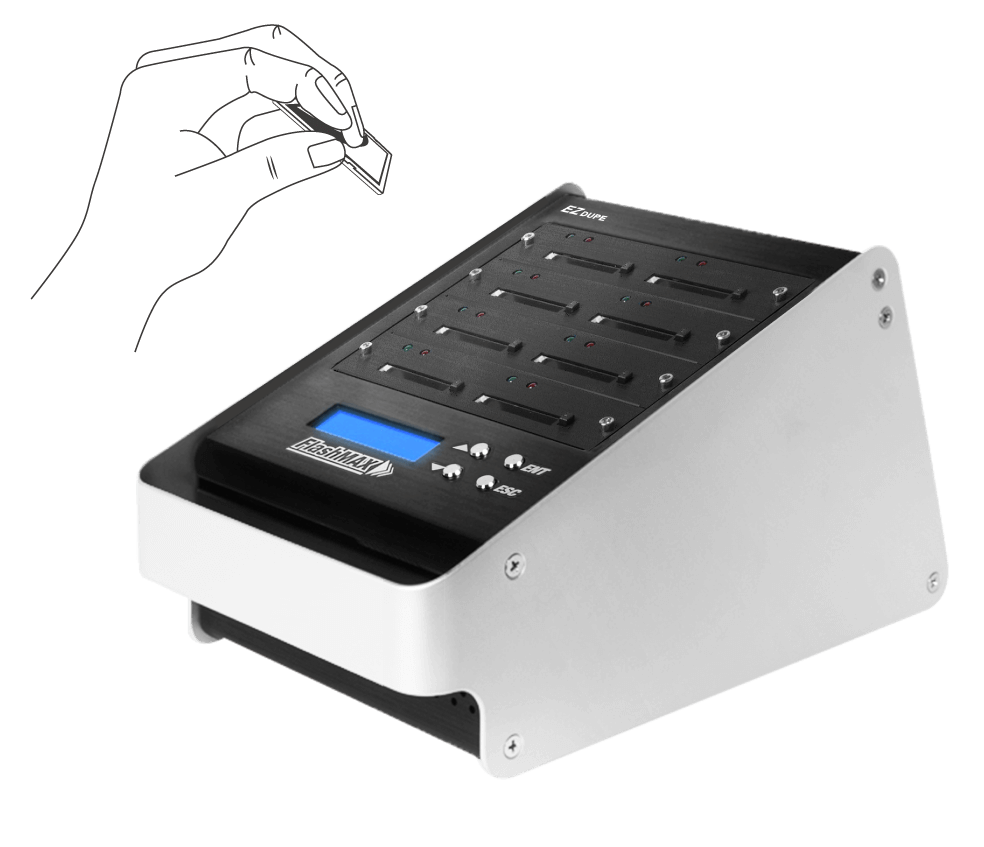

flashmax cf duplicator streamlined slop panel

State of the Art

In aspirations of simple and neat design, FlashMAX series duplicator embedded CF ports on a special streamlined slope panel, allowing you to easily plug or unplug CF cards in an ergonomic angle.

CF Asynchronous Copy Saves Your Every Minute

Copy process starts immediately when a new target is inserted, does not have to wait for all target devices get ready. It saves a lot of time during inserting the target device, the more targets the more time is saved. Exclusive technology enables asynchronous operation without the restrictions of memory size.

Choose the most efficient copy mode to fit your needs

4 copy modes for CF card are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.

Copy Area

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.

Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.

Example
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.

Four Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse CF cards, this is an ideal function to erase data based on different level of secrecy.

Quick Erase

Erase the index of a CF card within a few seconds.

Full erase

Erase the data from a CF card by overwriting each sector which is able to read/write data.

3-Pass DoD

Erase CF card 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

7-Pass DoD

Erase CF card 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

The Best Guard for Device Inspection-Quality Check

H3 Read Test
H5 Read/Write Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

6 Testing Criteria
Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/ Format type

4 Testing Results
Bad sector quantity / Tested capacity / Average read speed / Average write speed

Other Features

Standalone, no need of computer or software, therefore no virus infection

Supports copy of single large file (over 4GB) with better compatibility
