SOHO series

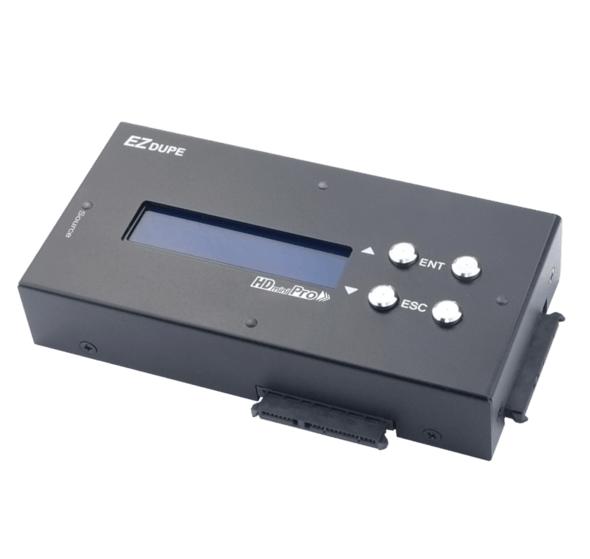

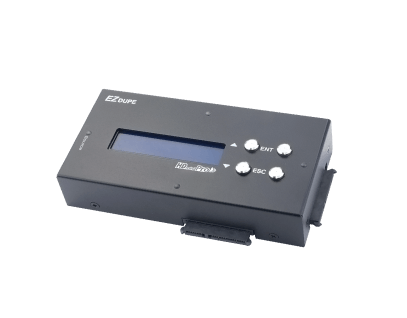

HDmini Pro

Professional Hard Drive Duplicator — Cool and small with numerous excellent functions

HDmini Pro hard drive duplicator breaks through limits and evolves! The HDmini Pro maintains the compact size of the HDmini, but increases the copy speed to 300MB/s while also supporting the ability to copy HPA, making it superior to the standard duplicators that can copy only the visible area.

Choose the most efficient copy mode to fit your needs

2 copy modes for SSD/HDD are provided, including Whole Media, System and Files. User can choose the most suitable copy mode according to different needs.
Copy Area

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.

Seven Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.
sata 2 duplicator with 18GB/min copy speed

Remarkable Copy Speed

High copy speed of 300MB/s (18GB/m) makes HDmini Pro Hard Drive Duplicator superb and better than other portable duplicators. The high copy speed will remain the same even if the number of load is increased. Stable transmission speed increases your working efficiency and productivity!
hard disk duplicator support mSATA, Micro SATA and NGFF

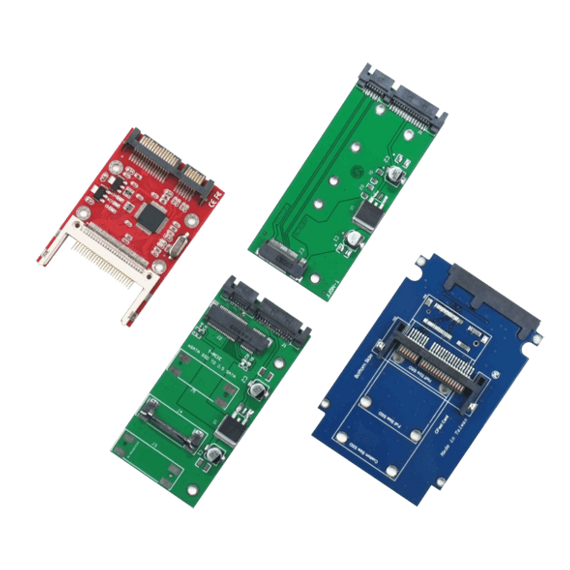

Supporting Multi-Format SSD Interfaces and CF CFast Card

HDmini Hard Disk Drive Pro Duplicator support mSATA, NGFF(M.2) and multi-format of SSD interfaces. CF and CFast Card are also supported.
*The converters are optional
2.5 and 3.5 HDD

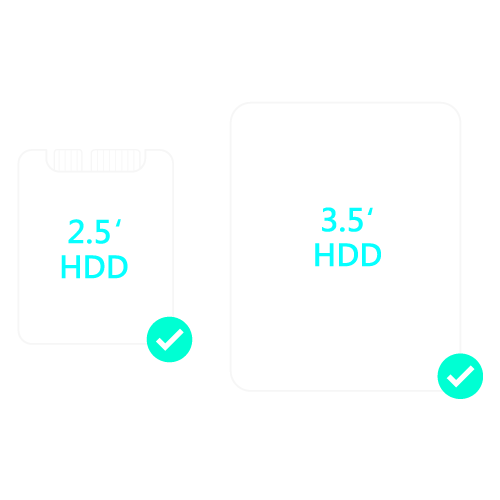

Compatible of Hard Drive with Different Sizes

HDmini Pro fits both 2.5" and 3.5" hard drive without the use of an adaptor. It is convenient for you to use Hard drive with different size and increase operation efficiency.

Other Features

Supports copying HPA area of the hard drive

Supports MBR and GPT format

Simple and intuitive user interface

HDmini Pro Duplicator Tutorial

Technical Specification

Operation Type Standalone(No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)
Target 3 (Model No. DM-HS2-4H3B)
Copy Speed 300MB/s
Copy Mode Synchronous
Copy Area Whole Media/ System and Files (Intelligent Copy)
Supported Media 2.5" and 3.5" HDD/ SSD
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Required 100~240V
Temperature Range Operating:41°F ~ 113°F (5°C ~ 45°C)
Storage:-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating:20%~80%
Dimension 13cm(L) x 8cm(W) x 3cm(H)
Net Weight 0.3KG
Certification FCC, CE, RoHS
