Classic Series

HD Leopardo

Professional Hard Drive Duplicator-Quickly complete a large number of hard drive copies

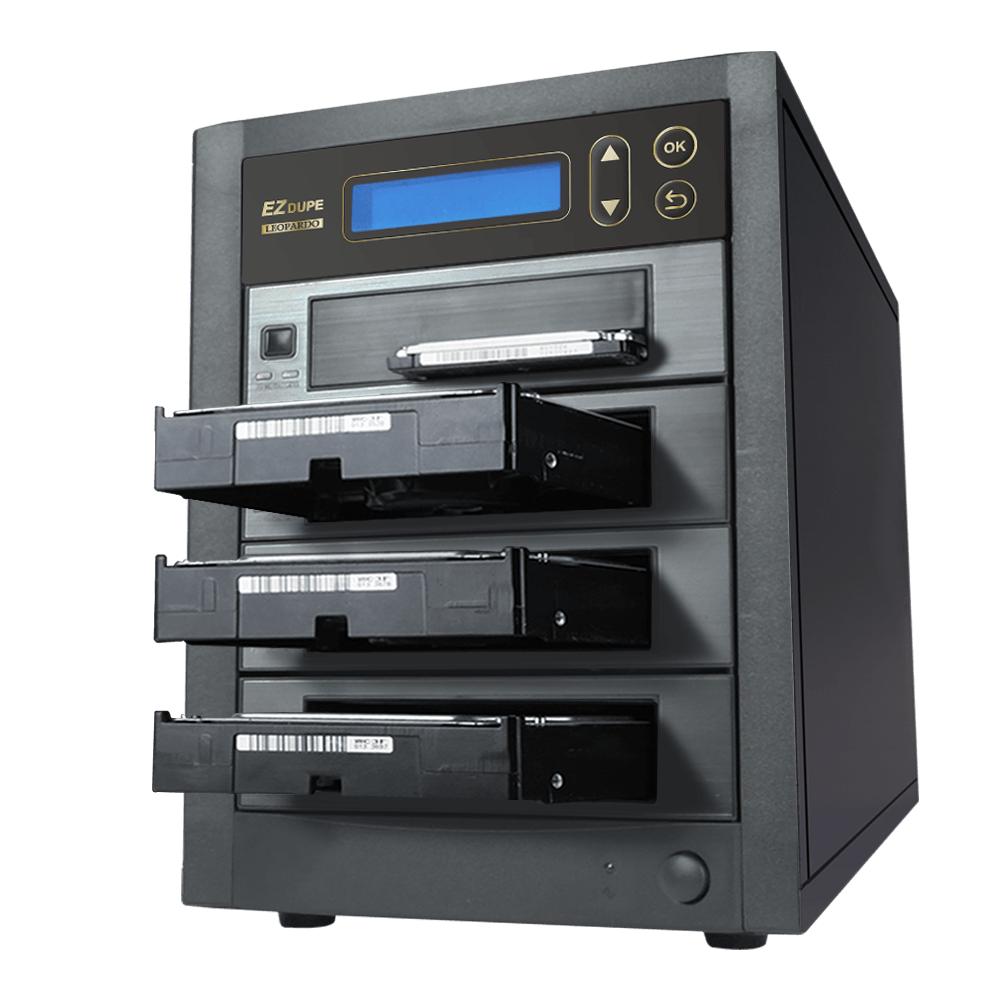

HD Leopardo can quickly produce a large number of hard drive copies for you. With independent bandwidth design for each port, it can copy to multiple devices without slowing down. Its intelligent copy plus a compact 2.5”/3.5” 2-in-1 hard drive tray design greatly improves production efficiency. This is the smart choice for easy mass production.
sata 2 hard drive duplicator for 2.5' and 3.5' hdd/ssd

Compatible of HDDs with Different Sizes

HD Leopardo Hard Disk Drive Duplicator is specially designed for 2.5” and 3.5” HDD/SSD. User-friendly interface allows you to conveniently insert 2 different sizes of hard drives without adapters.

Choose the most efficient copy mode to fit your needs

4 copy modes for SSD/HDD are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.
Copy Area

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.
sata 2 duplicator with 18GB/min copy speed

Outstanding Copy Speed Up to 300MB/s

The copy speed of HD Leopardo HDD Duplicator is up to 300MB/s or 18GB/m. The high copy speed will remain the same even if the number of load is increased. Stable transmission speed increases your working efficiency and productivity!

Seven Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.

Other Features

Supports copying HPA area of the hard drive

Supports MBR and GPT format

Automatically alerts user to remove any slow hard drives to prevent them from slowing down the overall copy speed

HD Leopardo Tutorial

Technical Specification

Operation Type Standalone(No PC required)
Language English, Spanish, Portuguese, and Japanese (Chinese is optional)

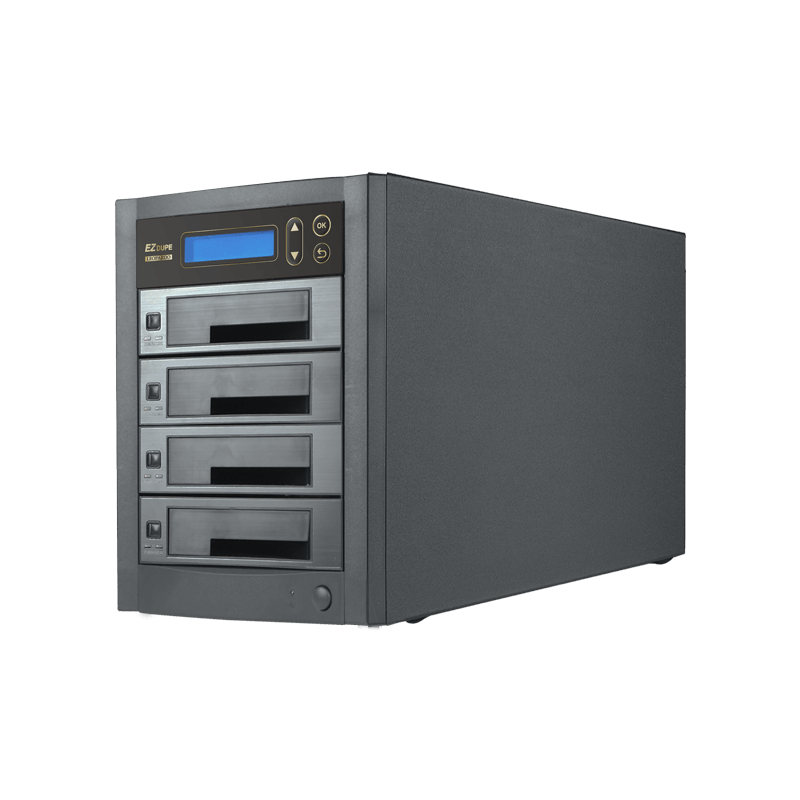

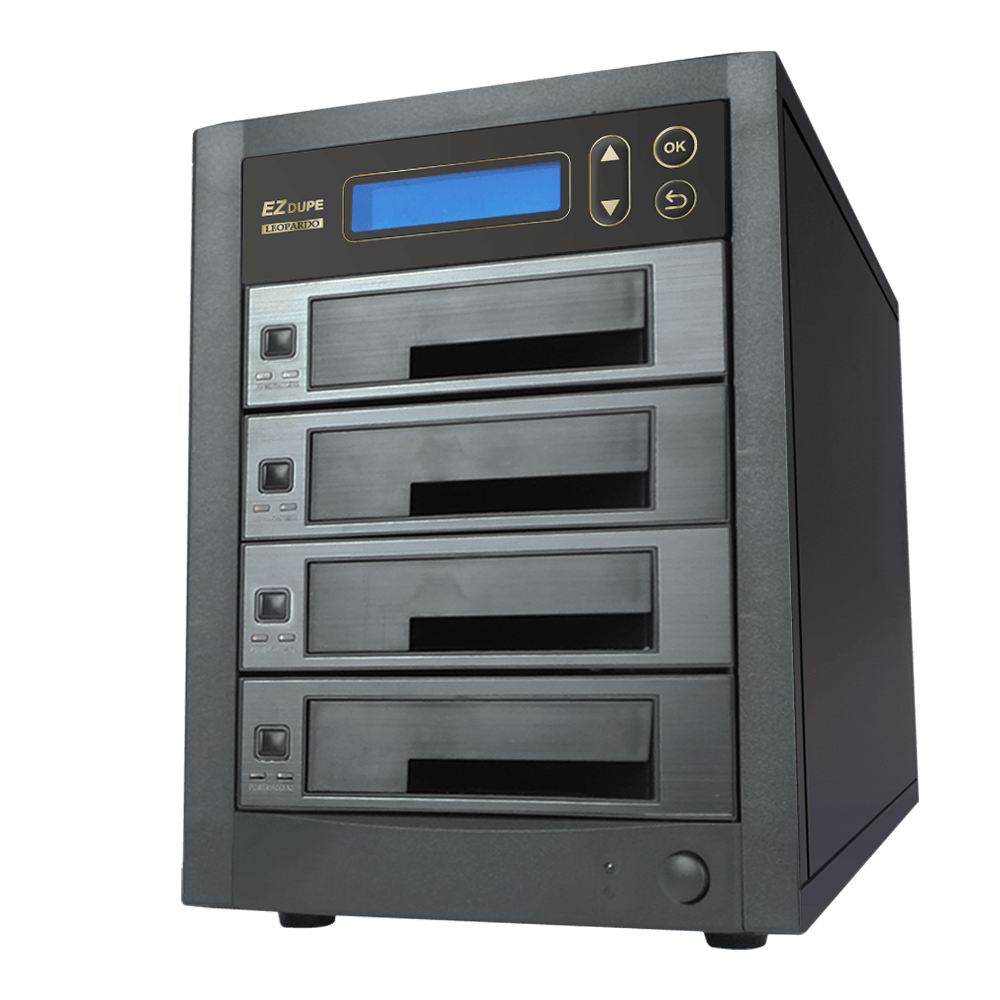

Target 3 (Model No. DM-HS2-2H03TC)
7 (Model No. DM-HS2-2H07TC)

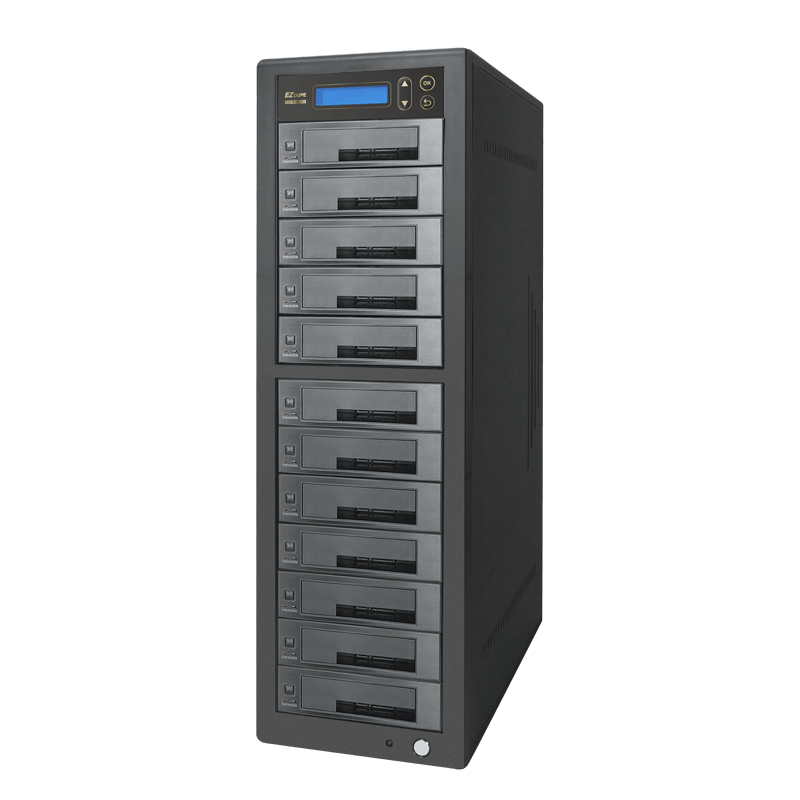

11 (Model No. DM-HS2-2H11TC)

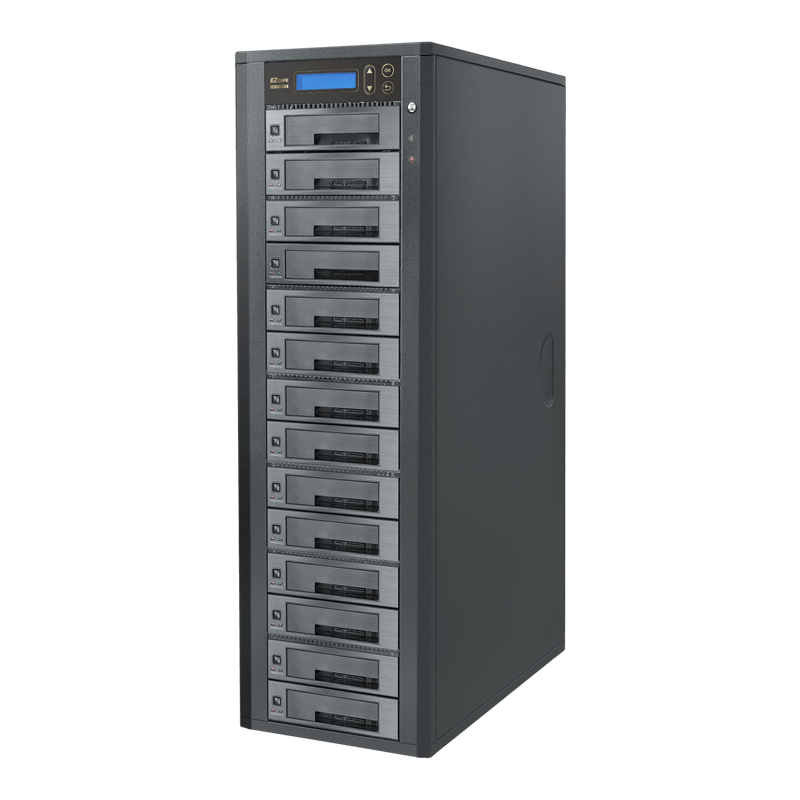

13 (Model No. DM-HS2-2H13TC)
16 (Model No. DM-HS2-2H16TC)

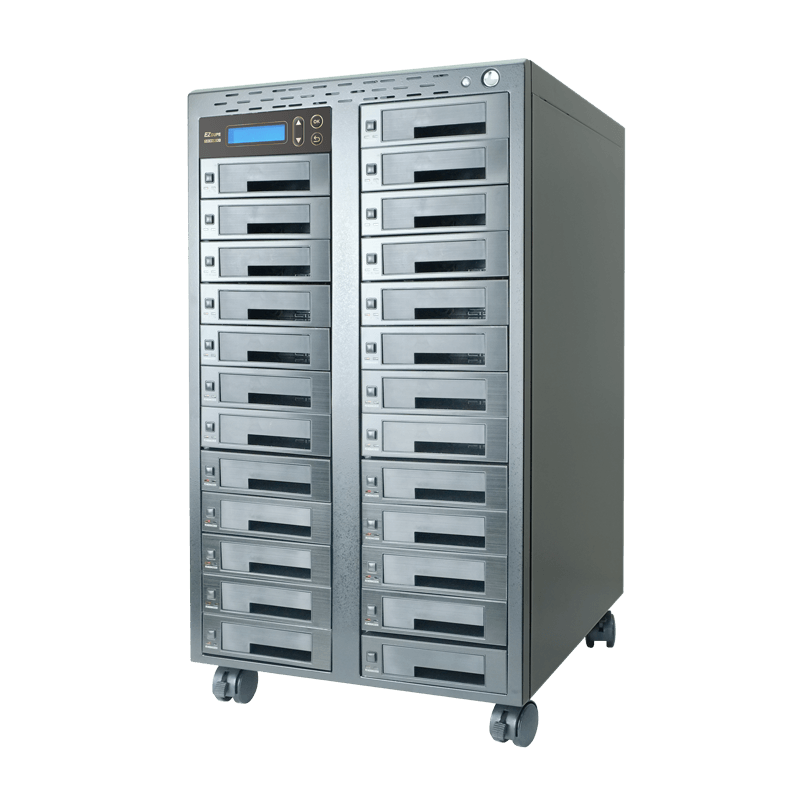

24 (Model No. DM-HS2-2H24TC)
Copy Speed 300MB/s
Copy Mode Synchronous
Copy Area Whole Media/ System and Files (Intelligent Copy)/
All Partition Copy/ Percentage Copy
Supported Media 2.5" and 3.5" HDD/ SSD
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
Display 2x16 Backlit LCD
Operation Interface 4 Control Buttons
System Memory 128MB
Power Required 100~240V
Size & Net Weight

1 to 3: 44*19*27cm/ 9kg

1 to 7: 52*22*41cm/ 11kg

1 to 11: 62*22*41cm/ 17kg

1 to 13: 71*22*41cm/ 19kg

1 to 16: 53*33*36cm/ 22kg

1 to 24: 60*36*41cm/ 30kg

Temperature Range Operating:41°F ~ 113°F (5°C ~ 45°C)
Storage:-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating:20%~80%
Certification FCC, CE, RoHS
