PRO series

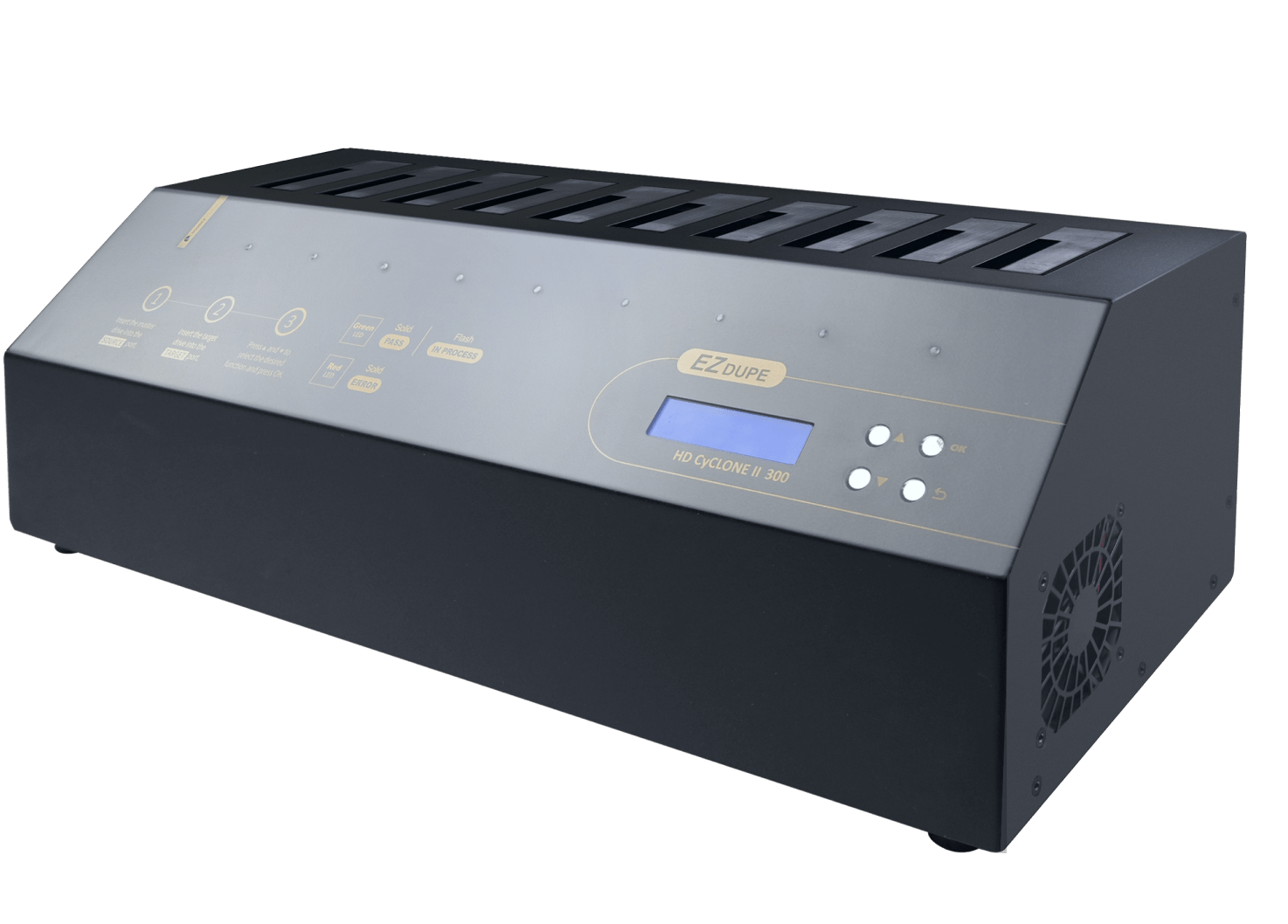

HD CyCLONE II 300
HD CyCLONE II 300
Professional Multifunction Hard Drive Duplicator
Sustainable innovation：Smaller and Faster.
Compare to the first generation of duplicators that required inserting hard drives horizontally, the hard drives are plugged vertically and making it more convenient to copy to 2.5-inch and 3.5 inch hard drives and reducing the space taken up by this machine. The HD CyCLONE II comes with not only the functions of the previous version but still can be daisy chained in a series. Having multiple HD CyCLONE II can increase production rate and making it especially useful in factories!

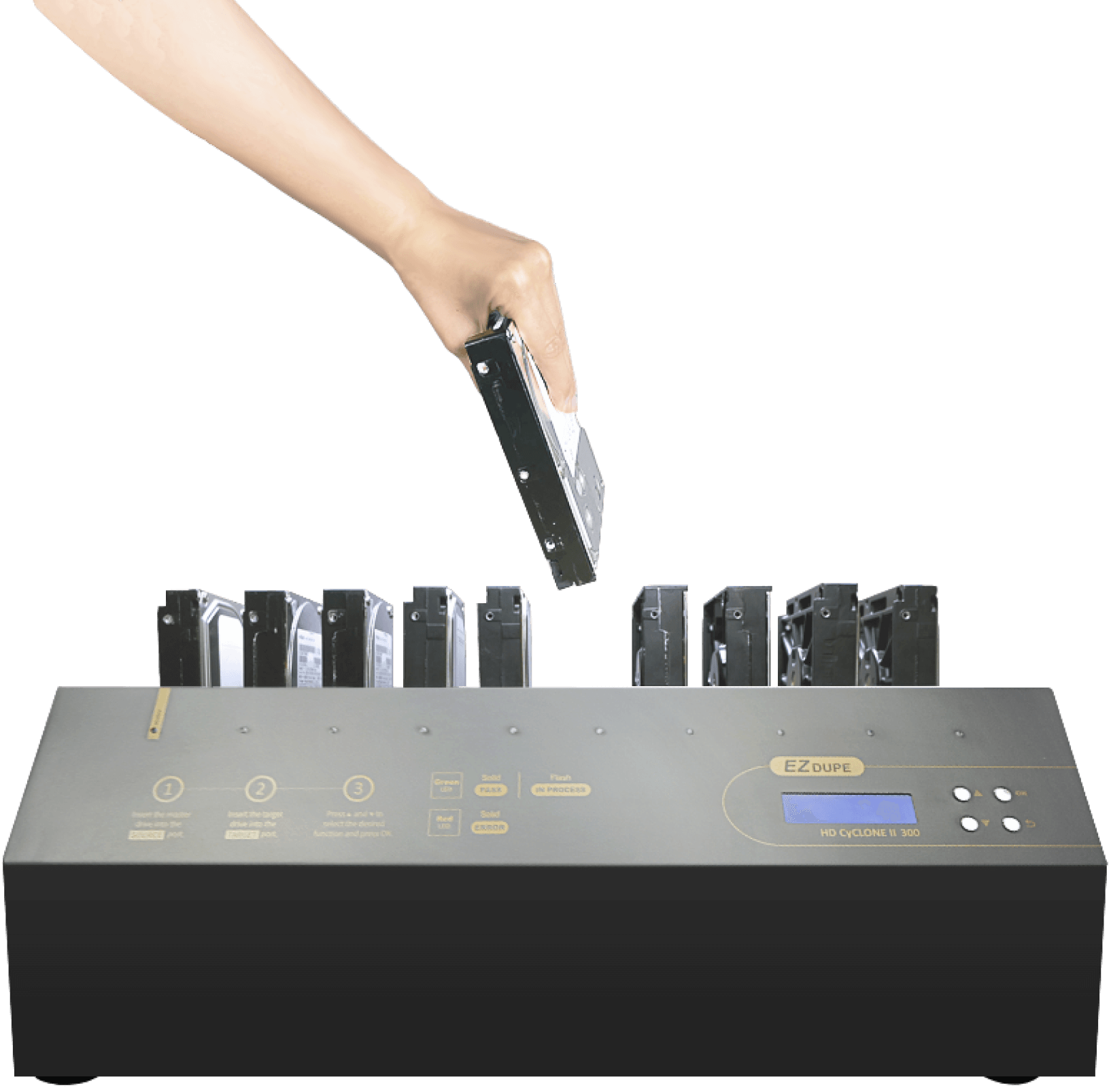

Plug Vertically
Vertical plug-in design makes plugging 2.5-inch and 3.5-inch hard drives fast and convenient,improving both space and work efficiency!

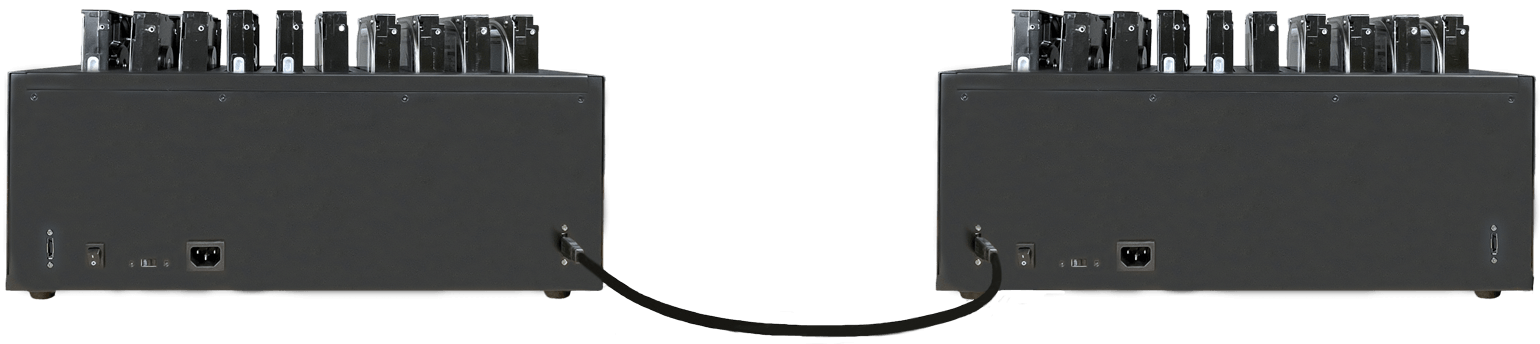

Daisy Chain
Easily mass copy by using daisy chain, allowing you to copy to multiple hard drives with only a single command input.Daisy Chain Up to 25 Duplicators
250 ports total

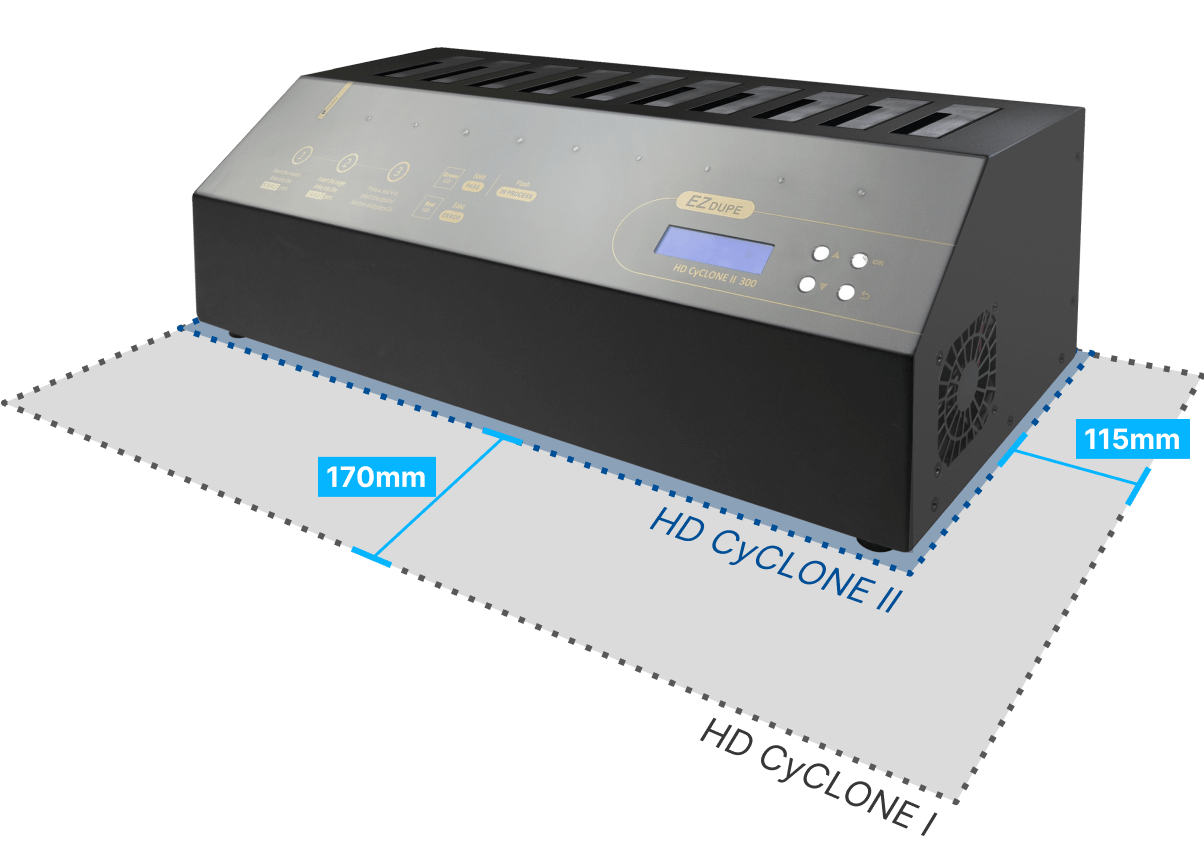

Reducing the space taken up by the machine
Hard drives are plugged vertically,Users can save a lot of space with this machine.Choose the most efficient copy mode to fit your needs
4 copy modes for SSD/HDD are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.Copy Area
Saving TimeSystem and Files Copy (Intelligent Copy)
Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.
Whole Media Copy
Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.
Percentage Copy
Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.
All Partition Copy
Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
Example
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.
Eight Data Erase Modes Keep from the Leakage of Confidential Data
When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.
Quick Erase
Erase the index of a hard drive within a few seconds.
Full Erase
Erase the data from a hard drive by overwriting each sector which is able to read/write data.
3-Pass DoD
Erase HDD 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.
7-Pass DoD
Erase HDD 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.
Secure Erase
According to National Institute of Standards and Technology (NIST) 800-88 Guidelines for Media Sanitization, Secure Erase is one of the ATA command. The data is totally and securely wiped from hard drives after implementation, and most of SATA hard drives on the market support Secure Erase.
Enhanced Secure Erase
Erase data by using SSD's built-in ATA command. Additional actions will be executed according to different design of hard drives, e.g., destroying the encryption key on SSD to make the data unable to be decoded.
Erase HPA Area
Remove the HPA partition and free up the space
Erase DCO Area
Remove the DCO partition.
Powerful Quality Check
H3 Read TestH5 Read/Write Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test
6 Testing Criteria
Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/
Format type
4 Testing Results
Bad sector quantity / Tested capacity / Average read speed / Average write speed
Other Features
The copy speed will remain the same even if the number of load is increased.
Simple and intuitive user interface
Detailed work records for effective production status tracking, providing customer production reports
Use S.M.A.R.T technical analysis to understand the hard drive aging degree
Automatically alerts user to remove any slow hard drives to prevent them from slowing down the overall copy speed
Asynchronous Copy Increase Working Efficiency Significantly
HD CyCLONE Tutorial
Technical Specification
| Operation Type | Standalone(No PC required) |
|---|---|
| Language | English, Spanish, Portuguese, and Japanese (Chinese is optional) |
| Target | 9 (Model No. DM-HS2-2H9CP) |
| Copy Speed | 300MB/s |
| Copy Mode | Synchronous/ Asynchronous |
| Copy Area | Whole Media/ System and Files (Intelligent Copy)/ All Partition Copy/Percentage copy |
| Supported Media | 2.5" and 3.5" HDD/ SSD |
| Supported File Systems for Intelligent Copy | Windows: FAT16/32, exFAT, NTFS Linux: ext2/3/4 macOS: HFS, HFS+, HFSX |
| Display | 2x16 Backlit LCD |
| Operation Interface | 4 Control Buttons |
| System Memory | 128MB |
| Power Required | 100~240V |
| Size | 51*24*20(cm) |
| Temperature Range | Operating：41°F ~ 113°F (5°C ~ 45°C) Storage：-4°F ~ 185°F (-20°C ~ 85°C) |
| Humidity Range | Operating：20%~80% Storage：5%~95% |
| Certification | FCC, CE, RoHS |
