SOHO series

Mini NVMe Plus

Plug & Copy Operation

The Mini NVMe Plus is specially designed to give you an easy and convenient way to operate the unit without the hassle of too many buttons. Supports M.2 NVMe & SATA SSD with Smart Power Protection.

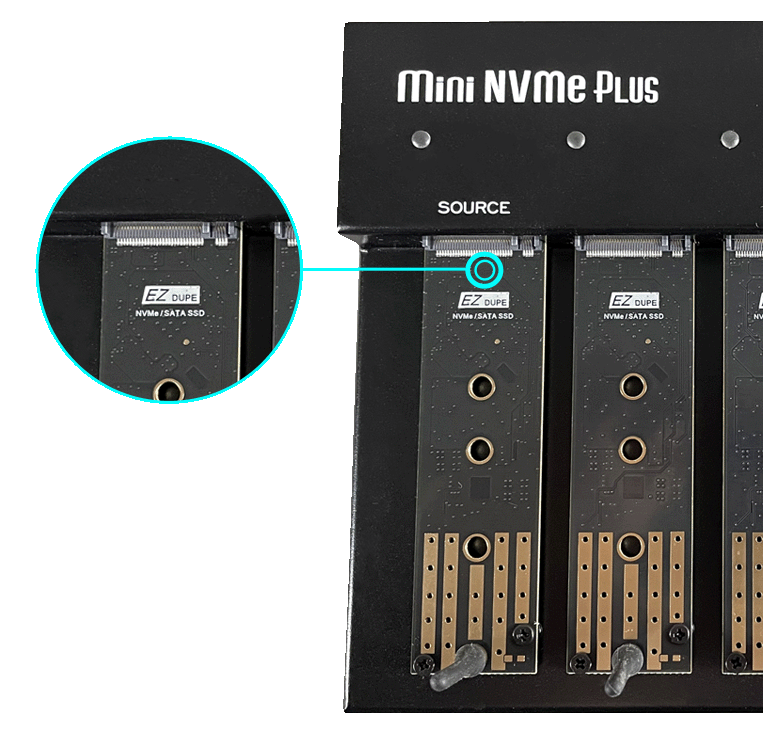

Mini NVMe Plus Duplicator
Independent channel, high-speed simultaneous copy

Independent channel, high-speed simultaneous copy
Ports copy independently, allowing simultaneous copies without losing speed

Mini NVMe Plus’s copy speed is not affected by simultaneous copying.
NVMe System and Files Copy

System and Files Copy

Promptly analyzes valid data areas using unique source analysis technology to only copy system and data files. No need to copy the whole media, allowing you to do more in less time!

System and Files Copy
supports file systems under three major operating systems: Windows, Linux and macOS.

Whole media copy
supports all kinds of file systems.

Device Protection

The ports are powered off during standby mode and powered on when working, to prevent short-circuit when the SSD is inserted.
NVMe Device Protection

Other Features

MK-II Features 1

Simple and intuitive user interface

MK-II Features 2

Standalone, no need connect computer or software, therefore no virus infection

NVMe SSD Duplicator Video

Technical Specification

Operation Type Standalone (No PC required)
Targets 4 (Model No. DM-HE0-5M04B)
Copy Speed 45MB/s
Copy Mode Synchronous
Copy Area System and Files(Intelligent Copy)
Supported Media M.2 NVMe & SATA SSD
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4
※Other file systems will be processed automatically by Whole Media Copy.
System Memory 128MB
Power Requirement Input:100~240V AC
Output : 12V/3A DC
Size 165mm × 130mm × 40mm
Net Weight 0.7kg
Gross Weight 1kg
Temperature Range Operating:41°F ~ 113°F (5°C ~ 45°C)
Storage:-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating:20%~80%
Certification FCC, CE, RoHS
