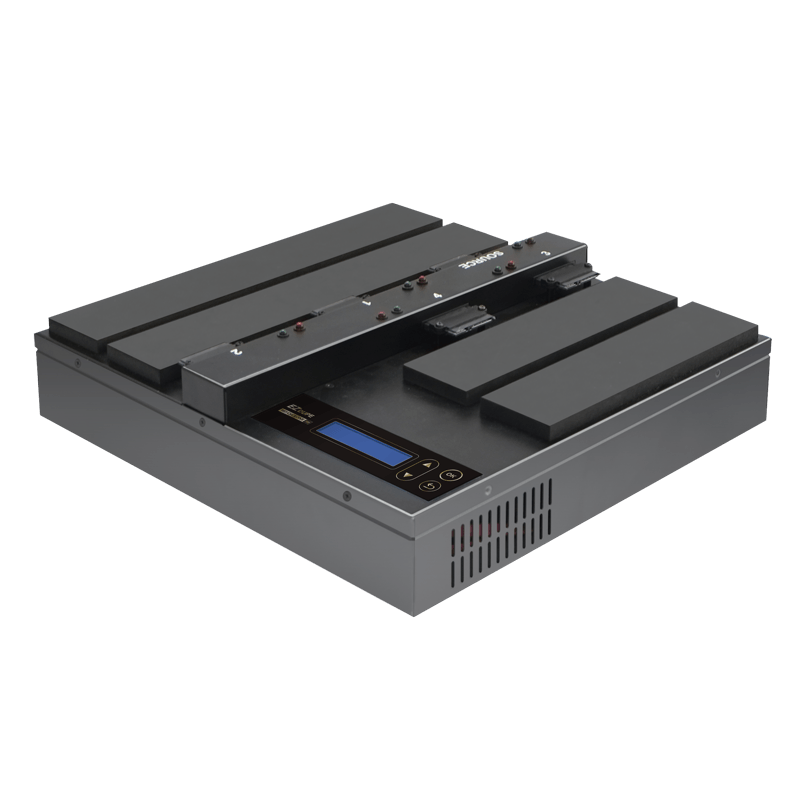

PRO series

HD CyCLONE 300/600

Professional Multifunction Hard Drive Duplicator — 3-in-1 Copy, Erase and Test

With a high copy speed up to 300MB/s & 600MB/s, the HD CyCLONE can complete tasks as quickly as a whirlwind, whether it is copying, erasing, or testing hard drives. With an innovative platform design which enables plugging and unplugging hard drives easily, and a durable, robust core system, it is the best tool for factories and enterprises to increase productivity and efficiency.

Buy Now!

hard drive duplicator's transfer speed is up to 300MB and 600MB

Different speed models for your needs

The HD CyCLONE series is divided into two models based on speed, with maximum data transfer speeds of 300MB/s and 600MB/s. Slots copy independently, allowing simultaneous copies without losing speed. You can choose according to your needs, saving time and significantly enhancing productivity!

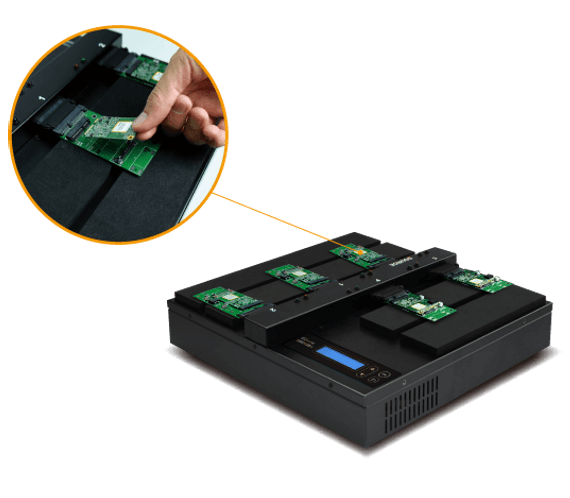

Open Platform Design

Creative Open Platform design for the convenience of SSD duplication. Inserting the SSD converter (SSD to HDD interface) into the copy port, and exchanging SSD without unplugging the converter to save time and achieve higher efficiency.

Supporting Multi-Format SSD Interfaces and CF & CFast Card

HD CyCLONE series HDD Duplicator support mSATA, NGFF(M.2) and multi-format SSD interfaces. CF and CFast Card are also supported.
*The converters are optional

Choose the most efficient copy mode to fit your needs

4 copy modes for SSD/HDD are provided, including Whole Media, System and Files, All Partitions, and Percentage copy. User can choose the most suitable copy mode according to different needs.

Copy Area

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.

Example
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.

Example
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.

Eight Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.

Quick Erase

Erase the index of a hard drive within a few seconds.

Full Erase

Erase the data from a hard drive by overwriting each sector which is able to read/write data.

3-Pass DoD

Erase HDD 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

7-Pass DoD

Erase HDD 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

Secure Erase

According to National Institute of Standards and Technology (NIST) 800-88 Guidelines for Media Sanitization, Secure Erase is one of the ATA command. The data is totally and securely wiped from hard drives after implementation, and most of SATA hard drives on the market support Secure Erase.

Enhanced Secure Erase

Erase data by using SSD's built-in ATA command. Additional actions will be executed according to different design of hard drives, e.g., destroying the encryption key on SSD to make the data unable to be decoded.

Erase HPA Area

Remove the HPA partition and free up the space

Erase DCO Area

Remove the DCO partition.

Powerful Quality Check

H3 Read Test
H5 Read/Write Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

6 Testing Criteria
Test range/ Bad sector ratio/ Read speed threshold/ Write speed threshold/ Capacity threshold/ Format type

4 Testing Results
Bad sector quantity / Tested capacity / Average read speed / Average write speed

Other Features

Supports copying hidden partition area (HPA) of the hard drive

Supports MBR and GPT format

Detailed work records for effective production status tracking, providing customer production reports

Asynchronous copy of hard disk drive - no need to wait for copy

Use S.M.A.R.T technical analysis to understand the hard drive aging degree

Automatically alerts user to remove any slow hard drives to prevent them from slowing down the overall copy speed

Get Started on
HD CyCLONE600

Product Video

Learn more about
HD CyCLONE600

Spec

HD CyCLONE Tutorial

Technical Specification

Operation Type	Standalone(No PC required)
Language	English, Spanish, Portuguese, and Japanese (Chinese is optional)

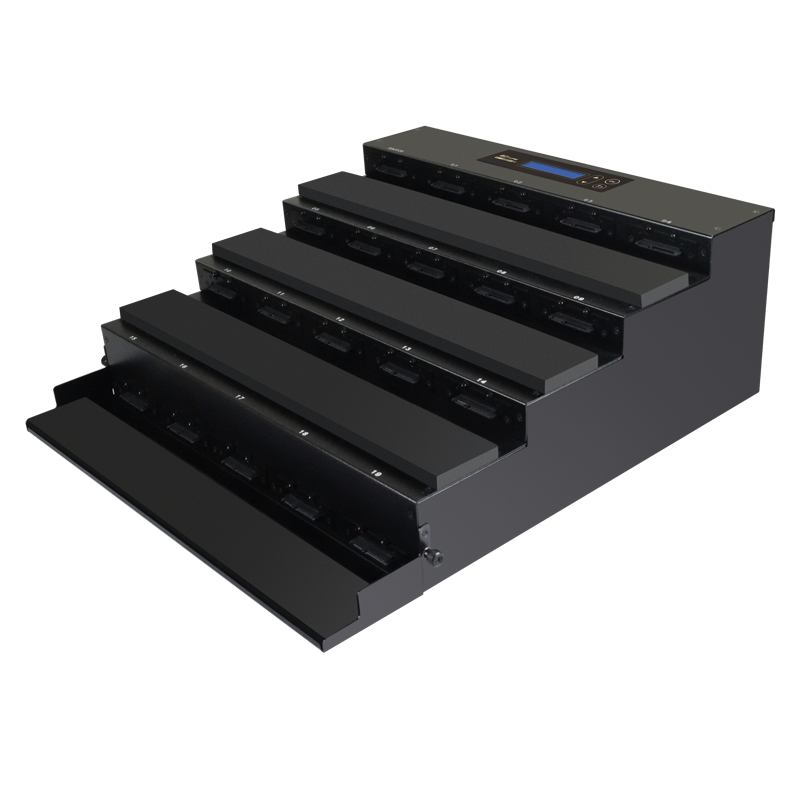

Target	4　 (300MB/s:Model No. DM-HS2-2H4PP \| 600MB/s:Model No. DM-HS3-2H4PP) 9 (300MB/s:Model No. DM-HS2-2H9PP \| 600MB/s:Model No. DM-HS3-2H9PP) 19 (300MB/s:Model No. DM-HS2-2H19PP\| 600MB/s:Model No. DM-HS3-2H19PP) only support 2.5" HDD/ SSD
Copy Speed	300MB/s, 600MB/s
Copy Mode	Synchronous/ Asynchronous
Copy Area	Whole Media/ System and Files (Intelligent Copy)/ All Partition Copy/ Percentage Copy
Supported Media	1 to 4 : 2.5" and 3.5" HDD/ SSD 1 to 9 : 2.5" and 3.5" HDD/ SSD 1 to 19 : Only support 2.5" HDD/ SSD
Supported File Systems for Intelligent Copy	Windows: FAT16/32, exFAT, NTFS Linux: ext2/3/4 macOS: HFS, HFS+, HFSX
Display	2x16 Backlit LCD
Operation Interface	4 Control Buttons
System Memory	128MB
Power Required	100~240V
Size & Net Weight	1 to 4: 93436cm/ 5kg 1 to 9: 152562cm/ 9kg 1 to 19: 174447cm/ 9kg
Temperature Range	Operating：41°F ~ 113°F (5°C ~ 45°C) Storage：-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range	Operating：20%~80% Storage：5%~95%
Certification	FCC, CE, RoHS
